New 2014.2 R2+Keygen!! as gift new vci ds150 SCANNER TCS pro plus DS150E
New Arrive tcs + 2014 Release 2
It is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
It can do the following:
A:Manufacture specific serial diagnose
B:Scan function
C:EOBD/OBDII communication
D:Serial Systems
E:Engine
F:Ignition
G:Climate
H:ABS
I:Service reset
G:SRS
K:Immobilizer
L:Instrument
M:Comfort system
D:Gear-box etc
Suitable for all kinds of languages 21:
English , Cesky, Dansk, Deutsch, Espanol, Francais, Greek, Hollands, Hungarian, Italiano, Norsk, Polish, Romania,Russian, Srpski, Suomen kieli, Svenska, Turkish.
With CARS, you are able to perform brand specific diagnostics for cars and light vans from
1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to
perform brand specific diagnostics for light and heavy commercial vehicles, buses and
trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the
legislation based diagnostics, specially targeted for emission related fault codes. GENERIC
is included in CARS and TRUCKS packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW
(J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).
FLIGHT RECORDER
With the flight recorder function, you can record parameters in real time while you are
driving a vehicle. During recording, you can, with a press of a button, highlight the
specific error so that you can investigate the detected error at a later time. TCS is
equipped with built-in memory thus removing the need to bring a computer. Memory cart not
include in package .
MULTI COLOUR INDICATOR
With the multi colour indicator on TCS CDP+, you have full control of the diagnostic
process. Different colors and sound communicates the status and the placement of the
indicator allows you to see it from a far. For example, if the indicator alternates between
blue and green the CDP+ is in communication with the vehicle control unit.
VOLTAGE CHECK
When TCS CDP+ is connected to the vehicle, the unit will check the battery voltage of the
vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts.
If the voltage gets too high or too low, CDP+ will warn you with both sound and light and
you will also be alerted through the battery icon in our diagnostic software.
CHASSIS NUMBER VIN
In our CARS software, we have a smart function that allows you to read out the chassis
number from the vehicle that you would like to diagnose. This ensures that the right model
and year is selected automatically. In addition, engine code for vehicles, which are
commonly available on the markets, is also selected automatically.
ISS
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the
fault codes that are stored in each system. This saves time and you get a quick overview of
the actual status of the entire vehicle. When the ISS is complete, you can then select a
specific control system to analyse the results further on.
ISI
Intelligent System Identification (ISI) identifies and selects automatically the type of
controller that is mounted in the vehicle. This ensures that the diagnostic session is
performed correctly with the correct parameters as required.
REPORT FUNCTION
Under this function tab, you will be able to see the adaptations and adjustments that are
possible for a specific vehicle without having the vehicle near you. Together with the help
texts as a guide, you can plan and be effective in your work; even under complex
situations.
OBD-FUNCTIONS
TCS CDP+ is equipped with an unique multiplexer technology, which allows it to be used on
all types of vehicles, regardless of voltage levels and communication standards. For those
vehicles that do not use the standard 16-pin connector, we offer a complete set of
certified and customized adapter cables and kits.
UNIVERSAL
For most OBD functions, such as adjustments and programmings, there are detailed
instructions and help texts to assist you in your diagnosis work. You will find step by
step information about prerequisites, preparation and implementation of various functions;
making even the most complex function simple to perform
HELP FUNCTION
For most OBD functions, such as adjustments and programmings, there are detailed
instructions and help texts to assist you in your diagnosis work. You will find step by
step information about prerequisites, preparation and implementation of various functions;
making even the most complex function simple to perform.

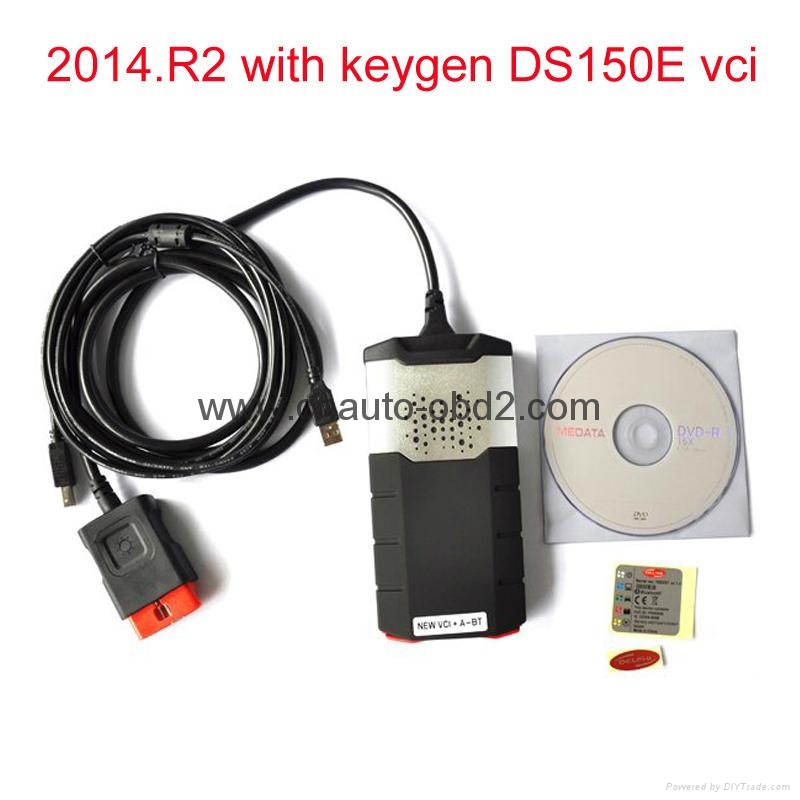

Packing
1pcs Hardware
1pcs CD(2014.2+Keygen on CD) New!!
1pcs USB cable
1pcs led obd2 cable
